PACKAGING MACHINES
CUP FILLER
SEMI PENUMATIC
The FAP 201 is a compact and efficient automatic packaging machine equipped with a Volumetric Cup Filler, ideal for accurate filling of granular and semi-free-flowing products. With high filling precision and flexible sealing options, this machine is perfect for medium-speed production lines.
TECHNICAL SPECIFICATION
MODEL: FAP 201
Filling System: Volumetric Cup Fille
Filling Accuracy : +/-0.1% – +/-0.2%
Type of Sealing: Center Seal / 3 Side Sea
Filling Range : 10gm to100 / 100gm to 250gm
PLC : Delta
Contact Part : SS 304
Film Roll Type :-Laminated Film
Speed:- 25 to 40 Bag/min (Varies with the Nature of Product & Filling Range)
Power :-2.5KW
Optional: Batch Coding Device, Batch Cutting Device Gas Flushing Unit
Machine Size: 1050mm x 990mm x 1900mm (L x W x H)
CUP FILLER

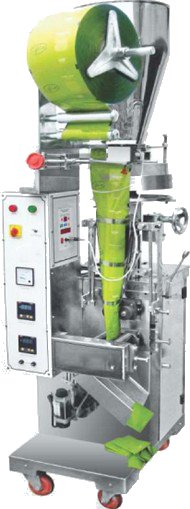

MECHANICAL F.F.S.
The FAP 301 is a highly efficient automatic packaging machine equipped with a Cup Filler, designed for precise filling of small quantities of granular and powder products. Its versatility in sealing options and high-speed operation makes it ideal for businesses requiring consistent and accurate pouch filling.
TECHNICAL SPECIFICATION
MODEL: FAP 301
Capacity : 5gm to 20gm
Filling System: Cup Filler
Filling Accuracy : +/-0.1%
Type of Sealing: Center Seal / 4 Side Seal, 3 Side Seal
Film Size : 160mm-250mm X Width 140mm-200mm Length
PLC : Delta, TC : Selectron
Contact Part : SS 304
Film Roll Type :-Laminated Film
Speed:- 35 to 60 Pouch per minute
Power :-2kw Single Phase
Optional: Batch Coding Device
Machine Size: 780 x 650 x 1950mm (L x W x H)
The FAP 301 is a highly efficient automatic
packaging machine equipped with a Cup
Filler, designed for precise filling of small
quantities of granular and powder products.
Its versatility in sealing options and
high-speed operation makes it ideal for
businesses requiring consistent and
accurate pouch filling.
TECHNICAL SPECIFICATION
Brochure 2025 13
MECHANICAL
