Vacuum Forming Machine

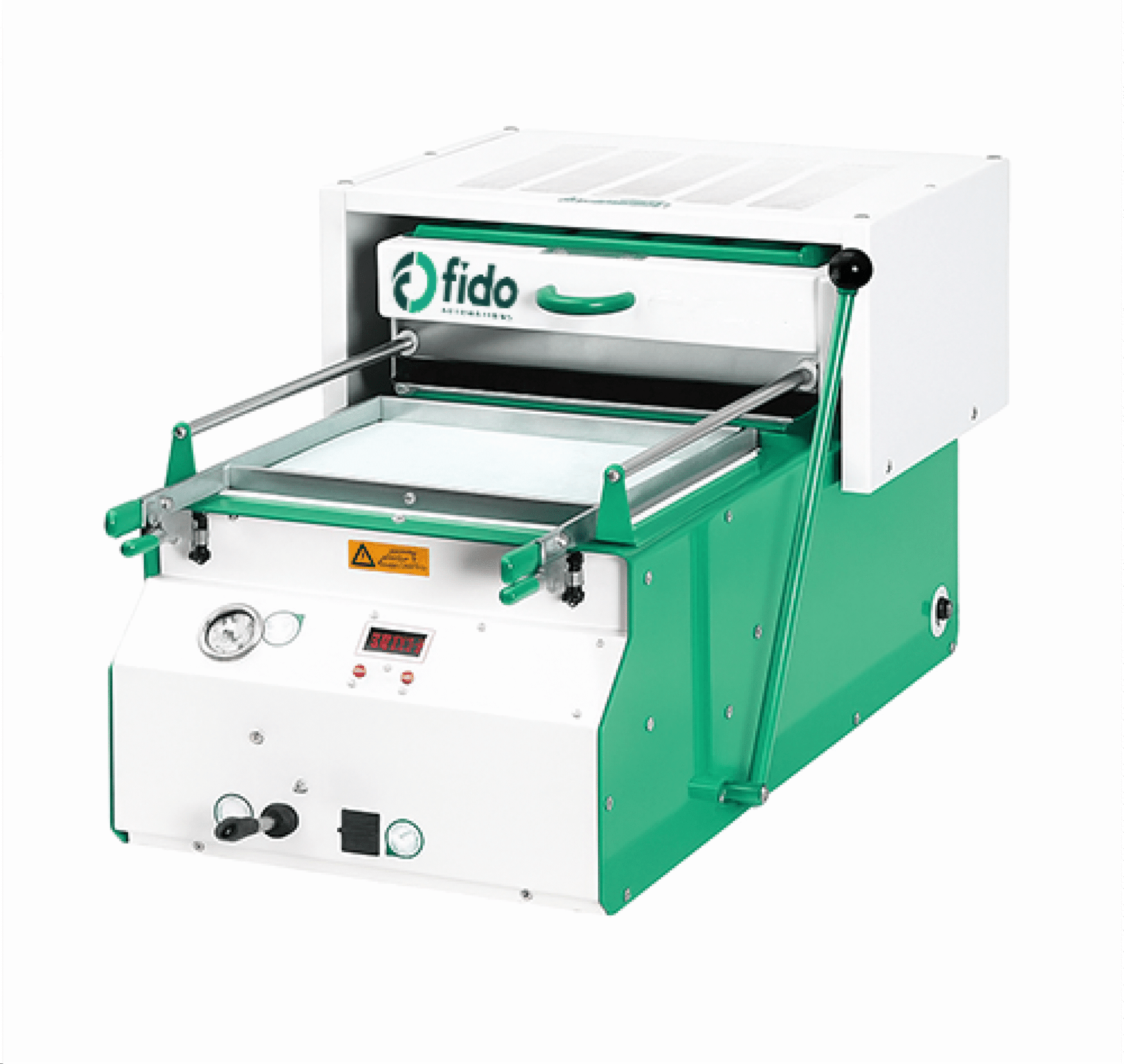

DESKTOP VACUUME
FORMING MACHINE
The MVF201 is a compact and efficient manual vacuum forming machine, designed for shaping a wide range of thermoplastic sheets into precise forms. Ideal for custom product manufacturing, prototyping, and small-scale production, this machine ensures consistent forming quality with high precision and uniform vacuum pressure
TECHNICAL SPECIFICATION
MODEL: MVF201
Forming Area mm : 430 x 280mm
Sheet Size mm : 450 x 300mm
Max Depthof Draw : 200mm
Max MaterialThickness : 1 mm
Heater Type: Quartz
HeatingZones: 4
Width; 640mm | Height : 545mm | Depth :985mm
Single Phase PowerRequirements : 208-240V / 13A
Power Consumption :2.4kW
Vacuum Pump Type: Diaphragm
Pump Flow (SCFM @ 0 in. / 60Hz)
(Pump flow m3 /h @ 0mbar / 50Hz) : 3.0 (4.9)
Mould release method: Pump exhaust.
