PACKAGING MACHINES

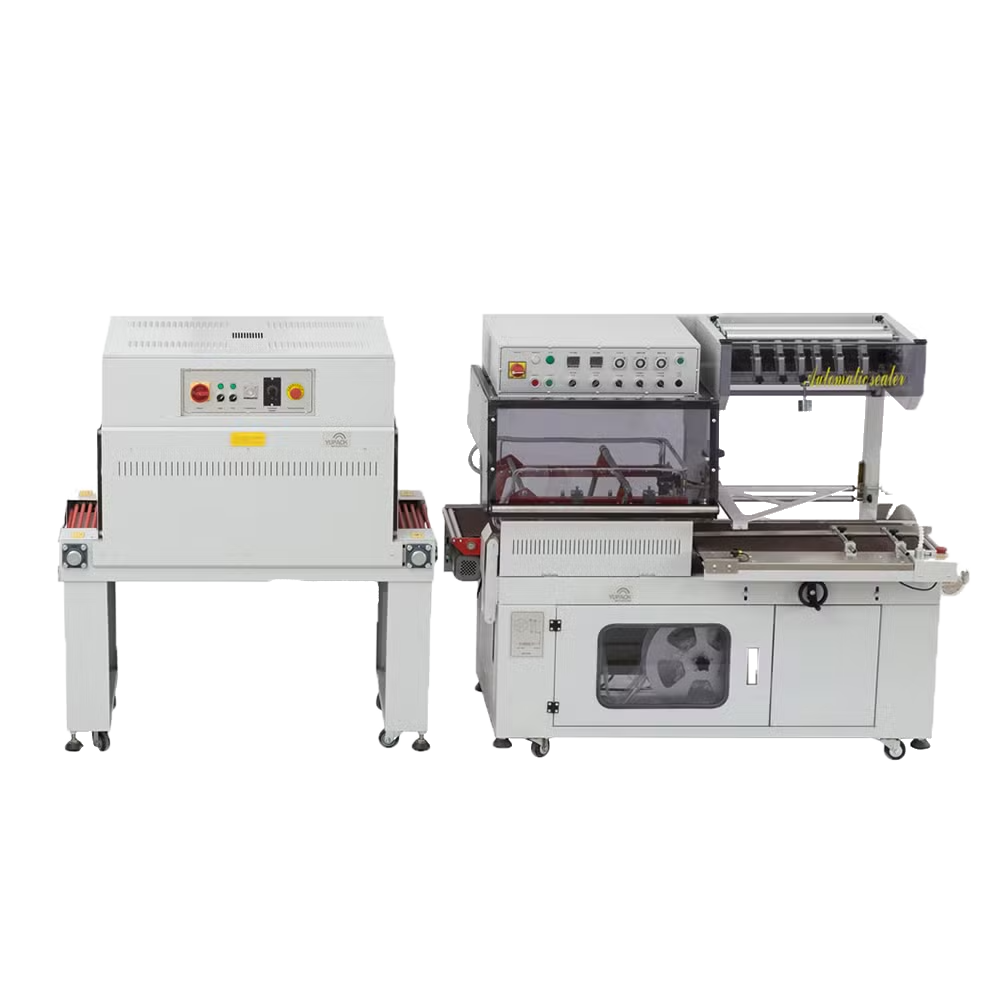

L- BAR SEALER FOR SHRINK
PACKAGING MACHINE
The FAP 604 L-Bar Sealer is designed to efficiently seal shrink films around prod ucts for shrink wrapping applications. This machine features a reliable electric power source and delivers consistent sealing performance for packaging a wide variety of products. Ideal for medium to high-volume packaging operations, the ST201 L-Bar Sealer model ensures high-quality seals and a quick turnaround time.
TECHNICAL SPECIFICATION
MODEL: FAP 704
l- bar sealer for shrink packaging machine
Sealing Size : 400 mm W X 800 mm L X 200 H mm
Sealing Dimension : 500 x 450 mm
Power Source : Electric
Voltage : 110V/220V
Frequency : 50 H
Capacity: 25-30 Pieces per minute

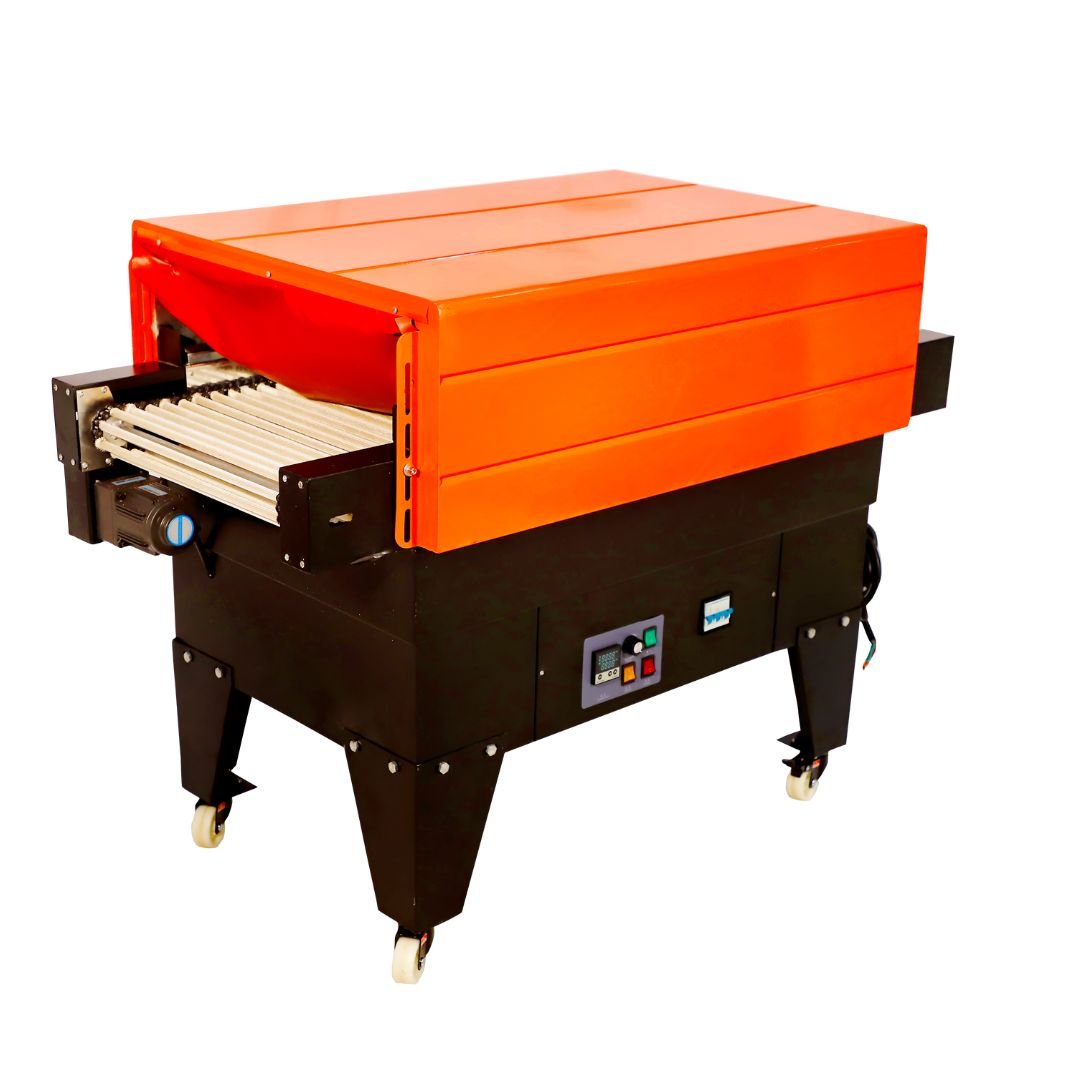

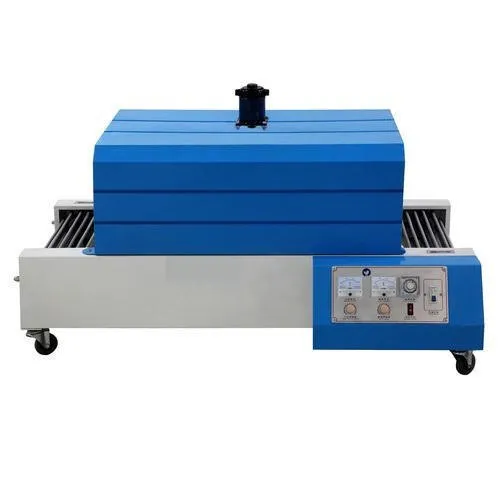

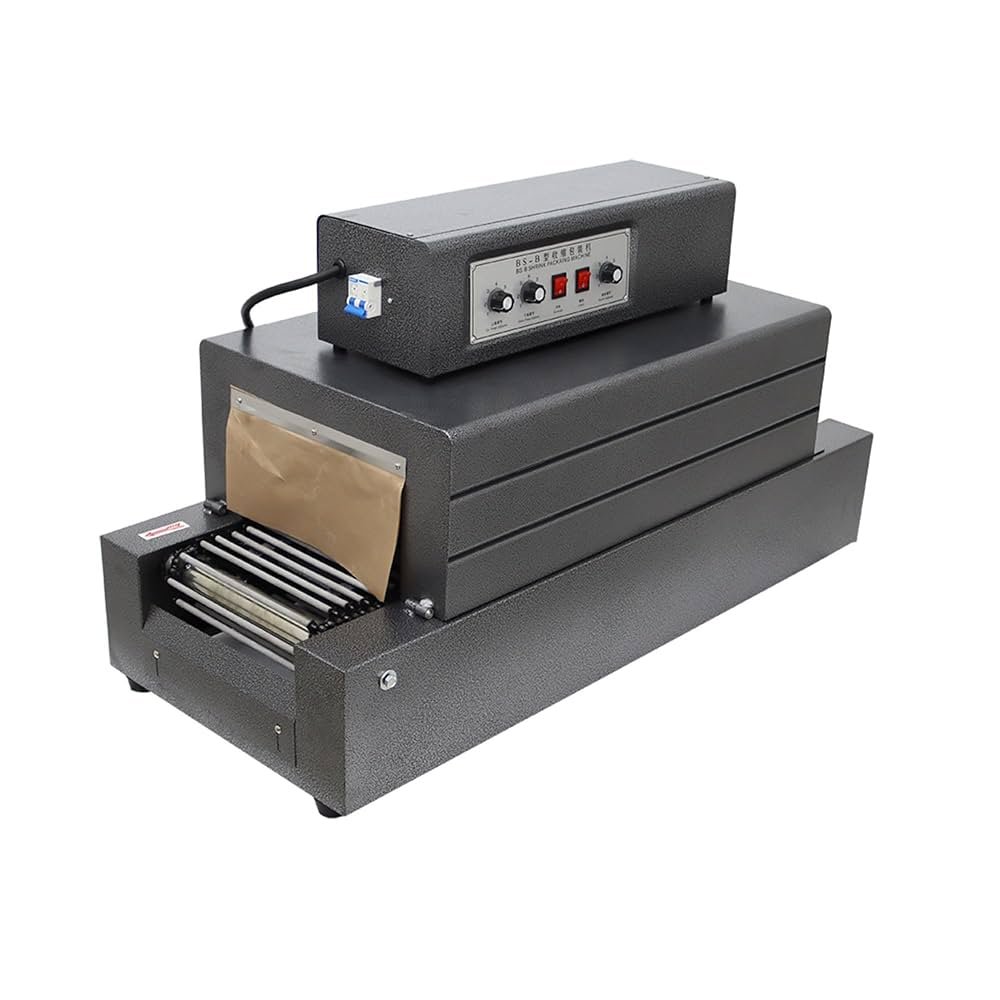

SHRINK PACKAGING
MACHINE
The Shrink Packaging Machine is designed for high-efficiency shrink wrapping of various products. Ideal for products such as bottles, cans, and boxes, the ma chine offers precise temperature control and a compact tunnel size, ensuring consistent packaging results with minimal energy consumption.
TECHNICAL SPECIFICATION
MODEL: FAP 701
Shrink Packaging Machine
Tunnel size : 600L x 200W x 150 H
Temperature : 0-300C
Power Consumption : 3 kw
Running load : 2kw
Tunnel Window Size : (8 x 6)
MODEL: FAP 703
Shrink Packaging Machine
Tunnel size : 800 L x 400 W x 200mm H
Convery speed : 0-10m/mi
Power Consumption : 5 kw
Running load : 3kw
Tunnel Window Size : (16 x 8)
MODEL: FAP 702
Tunnel size : 800mm L x 400mm W x
250mm H
Packing speed : 4-10 packs/min
Power Consumption : 7.5 kw
Running load : 3.5kw
Tunnel Window Size : (16 x 8)

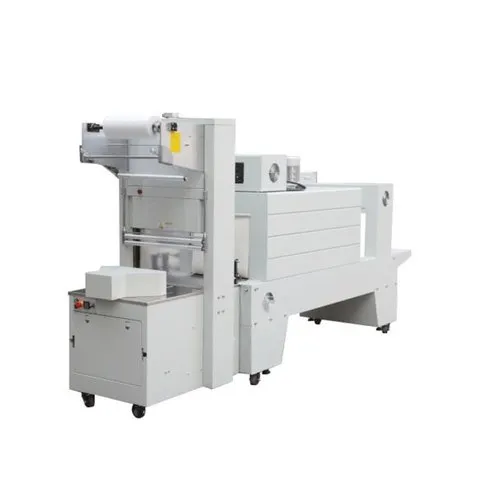

SEMI AUTO & AUTOMATIC SLEEVE
WRAPPER + SHRINK TUNNEL
The FAP 605 (Pneumatic) is a versatile semi-automatic and automatic sleeve wrapper equipped with an integrated shrink tunnel, designed to provide high-speed, consistent, and efficient shrink wrapping for a wide range of products. Whether you're wrapping bottles, boxes, or other consumer goods, this machine ensures reliable packaging with a variety of shrink films.
TECHNICAL SPECIFICATION
MODEL : FAP 705 (PNEUMATIC)
Semi Auto & Automatic Sleeve Wrapper + Shrink Tunnel
Power : 1.8 kw
Capacity : 0-6 packing /minute
Air Source Supply : 170L/min 0.3-0.5 MPA
Width/Thickness of the film : Max 550mm/0,03-0.25mm
Min. Packing Dimension : 250x60x60mm
Machine Size : 1020x830x1980mm
Conveyer Drive Size : 900x410x400mm
Shrink film : PE,POF,PVC,PP
SEMI AUTO & AUTOMATIC SLEEVE
WRAPPER + SHRINK TUNNEL
TYPE 2
The FAP 606 is a versatile semi-automatic and automatic sleeve wrapper equipped with an integrated shrink tunnel, designed to provide high-speed, consistent, and efficient shrink wrapping for a wide range of products. Whether you're wrapping bottles, boxes, or other consumer goods, this machine ensures reliable packaging with a variety of shrink films.
TECHNICAL SPECIFICATION
MODEL: FAP 706
Semi Auto & Automatic Sleeve Wrapper + Shrink Tunnel
Power : 3 kw
Capacity : 0-10 packing /minute
Air Source Supply : 250L/min 0.4-0.6 Mpa
Width/Thickness of the film : Max 550mm/0,03-0.25mm
Min. Packing Dimension : 250 x 60 x 60mm
Machine Size : 1020 x 830 x 1980mm
Conveyer Drive Size : 900 x 410 x 400mm
Shrink film : PE,POF,PVC,PP
